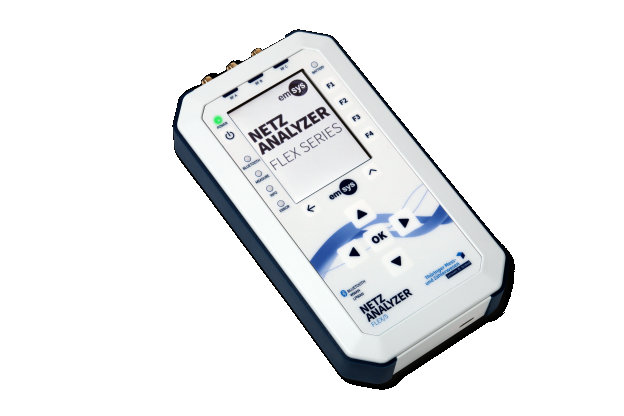

Signal Level Meter

Model Netz-Analyzer Flex/5

Mobile Network 2G, LTE and LTE-M including Band 72 (450 MHz), NB-IoT

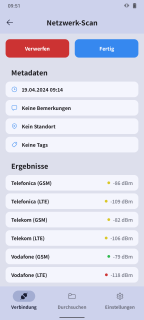

Scan and analyze available networks
Provide cell details
Measure signal level and quality

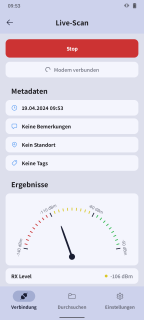

Register to network and do live-scan
Upload/download speed test
Long-term scan (up to 24 hours)
SMA antenna connector
SMA-Fakra adapter available connector

Wireless M-Bus

Scan for smart meter devices (868 MHz)
Basic wM-Bus message decoding
Report manufacturer ID, serial number, device type, encryption type, RSSI and raw payload
Long-term scan (up to 24 hours)
SMA antenna connector
SMA-Fakra adapter available connector

LoRaWan Testing

LoRaWan end-device emulation mode (868 MHz)
Support OTAA join procedure
Capability to send uplink data
Various LoRaWan parameters can be changed (Data-Rate, TX-Power, payload size, ..)
SMA antenna connector
SMA-Fakra adapter available connector

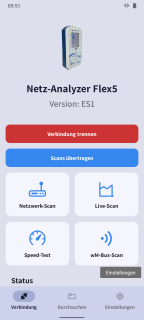

Smartphone App interface

Bluetooth and USB upstream interfaces
Measurement control and result visualization
Reference Android™ App available on Google Play™

Easy handling

Compact size: 170 × 95 × 33 mm
Magnetic back allows easy mounting
Integrated battery for up to 16 hours of operation

Usage scenarios

Rolling out smart metering devices is a challenging process. Prior to gateway installation, the emsys Signal Level Meter supports service technicians by providing detailed information about attainable signal quality for appropriate mobile networks, discover the optimal location for antenna installation, prepare gateway system configuration, and more.

Open and well-documented Bluetooth and USB communication protocols enable device integration into custom smart meter rollout software.

Alternatively, emsys‘ own reference Android app can be used for free.
